Machine Vision Equipment Product Line

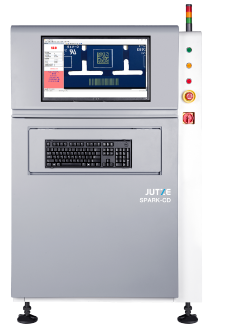

SPARK-CD

Double-sided L size online automatic laser engraving machine Purpose: Engraving of 1D/2D barcode, characters and patterns on PCB board

A/B surface double laser carving head，A/B surface independent X-axis and Y-axis servo drive;

A/B side independent air purification system,A/B side synchronous marking structure;

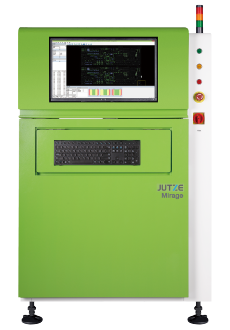

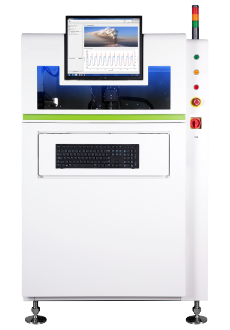

Mirage

Online fully automatic 3D SPI Features: Perfect application of 3D high-precision contour measurement technology

Dual light source digital projection detection without shadows and high accuracy

Can only optimize the detection route, high test efficiency

Full-page 3D image display, 100% defect coverage

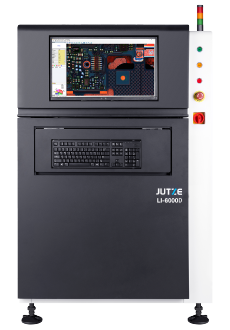

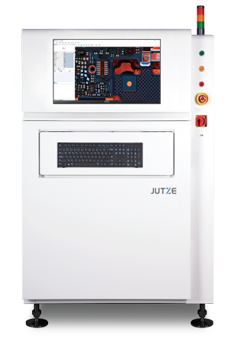

LI-6000D

Double track L size online automatic 2D AOI Features: LI-6000 dual-track model

High resolution industrial camera

Real-time SPC data analysis and processing

JUTZE unique multi-phase light source system; multi-threaded parallel processing
pandiax

Automatic precision dispensing machine

Based on machine vision and perfect automatic control, fast and accurate dispensing is realized.

The maximum moving speed of the motor can reach 1.5m/s, and the dispensing frequency can reach 250Hz

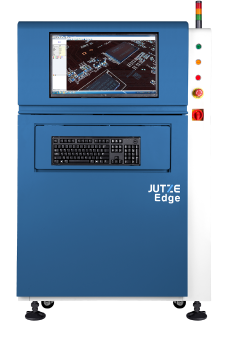

Edge

Online fully automatic 3D AOI Purpose: Defect detection such as missing parts, offset, misalignment, extreme inversion, virtual welding, bridging, damaged parts, etc.

Perfect combination of 2D and 3D technology;

Innovative 3D digital projection measurement technology;

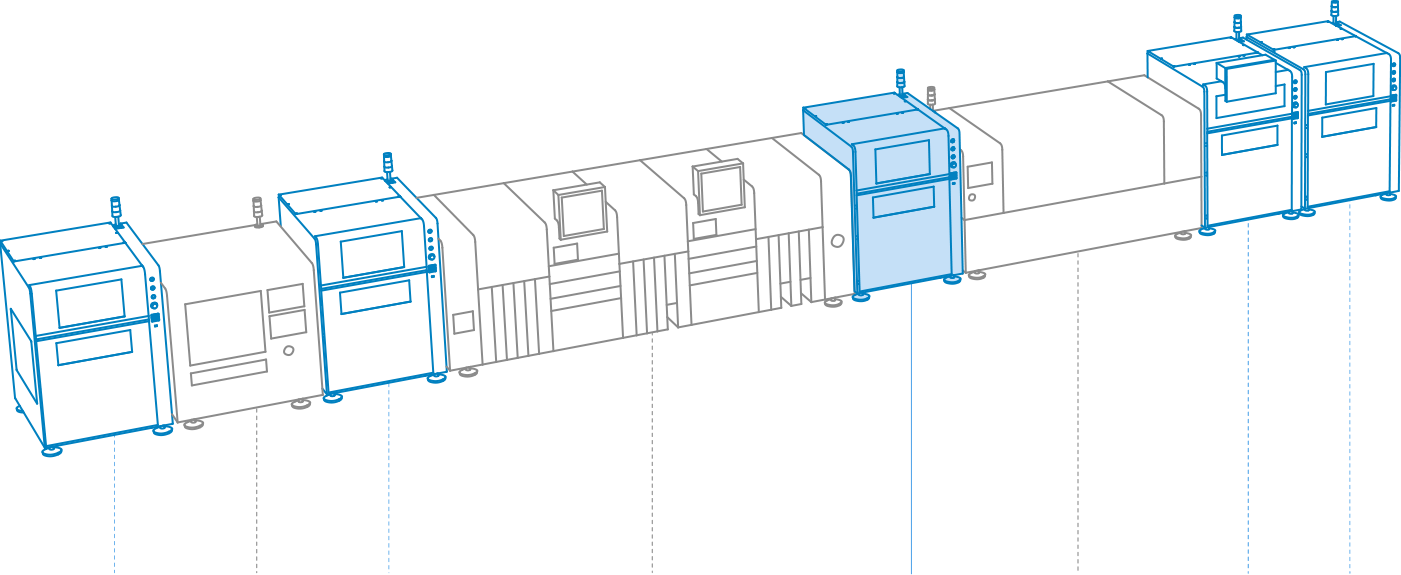

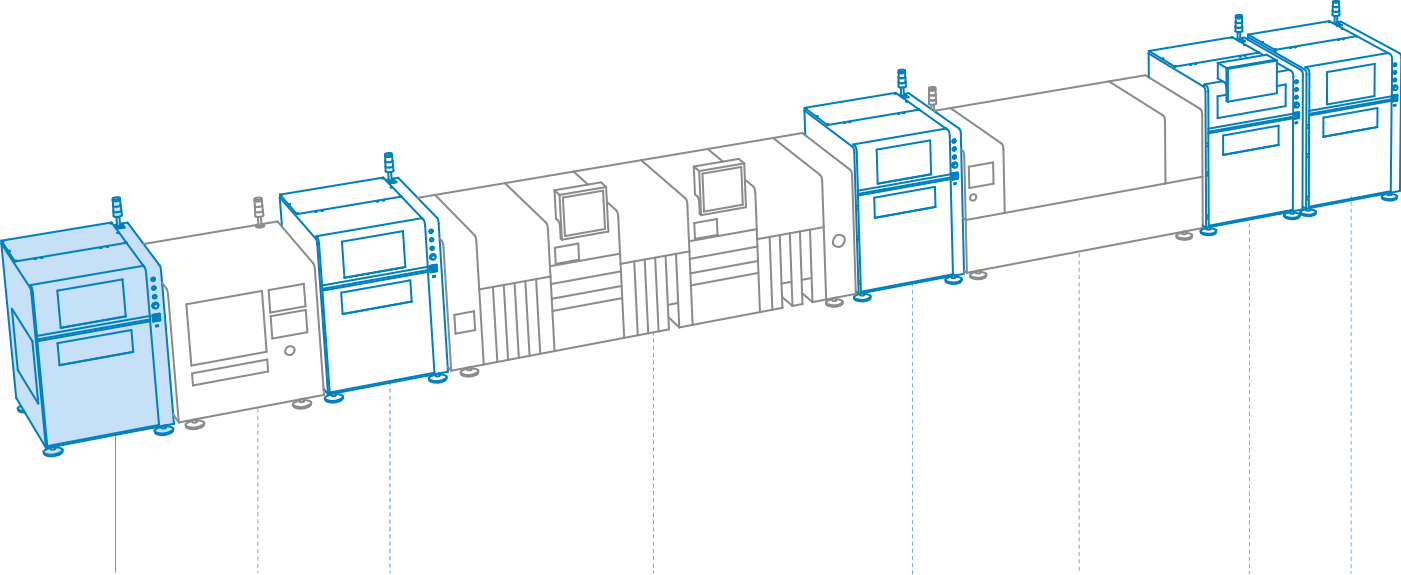

Laser Marker
3D SPI
2D AOI
Dispensing System
3D AOI

Printer

Pick & Place

Reflow Oven

Twins

Online double-sided 2D AOI
Purpose: Defect detection such as missing parts, offset, extreme inversion, tombstone, bridging, bad pins, etc.

Can be linked with selective wave soldering to feedback bad information.

Coaxial epi-illumination light source avoids the shadow effect caused by high components.

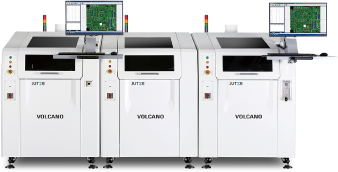

Selective wave soldering

Selective wave soldering

table transmission mechanism and high repeat positioning accuracy

New modular structure design, free and flexible production line matching
Twins

Online double-sided 2D AOI
Purpose: Defect detection such as missing parts, offset, extreme inversion, tombstone, bridging, bad pins, etc.

Can be linked with selective wave soldering to feedback bad information.

Coaxial epi-illumination light source avoids the shadow effect caused by high components.
SPARK-CD

Double-sided L size online automatic laser engraving machine Purpose: Engraving of 1D/2D barcode, characters and patterns on PCB board

A/B surface double laser carving head, A/B surface independent X-axis and Y-axis servo drive;

A/B side independent air purification system,A/B side synchronous marking structure;
SF211

Based on pixel-level programmable algorithm, customer customized data establishment, Barcode easily connects to MES system.

PCustomized vacuum nozzle, imitating manual handling

The manipulator can achieve the efficiency requirement of 1.2 m/s handling speed

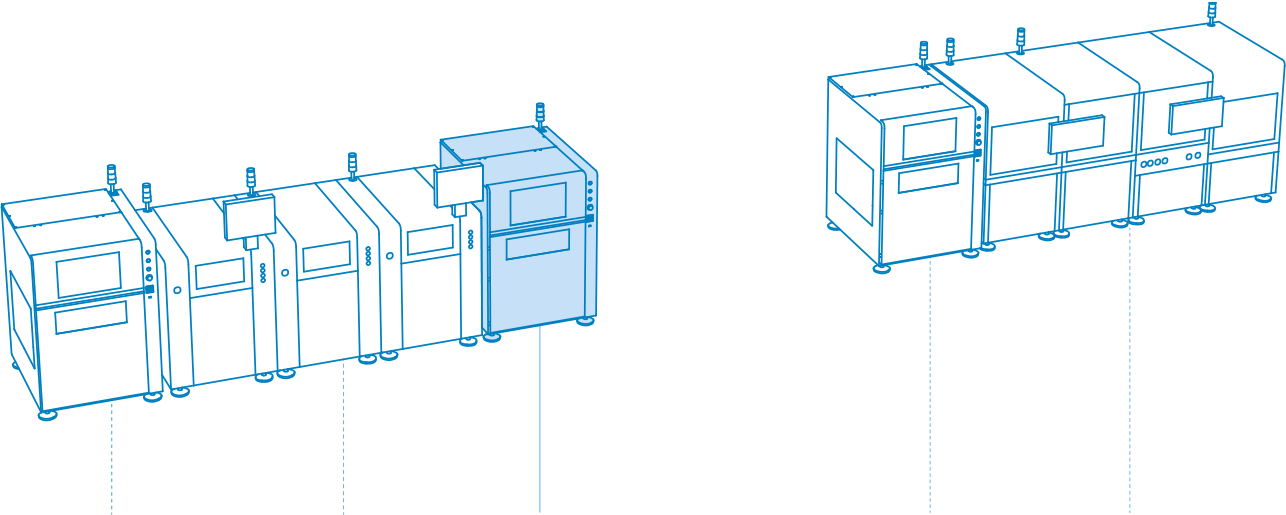

Double-sided AOI

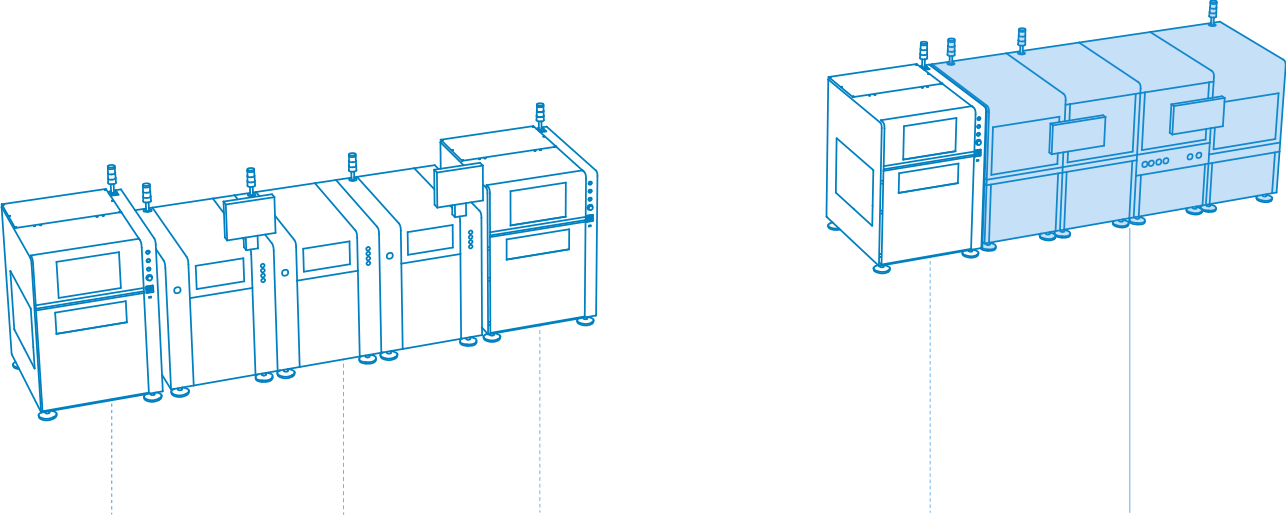

Modular Selective Wave soldering
Double-sided AOI
Laser Marker
FPC AOI
